6x6, utrolig fremmkommelighet - Vannbestandig - Låsbare differ styrt fra fjernkontroll.

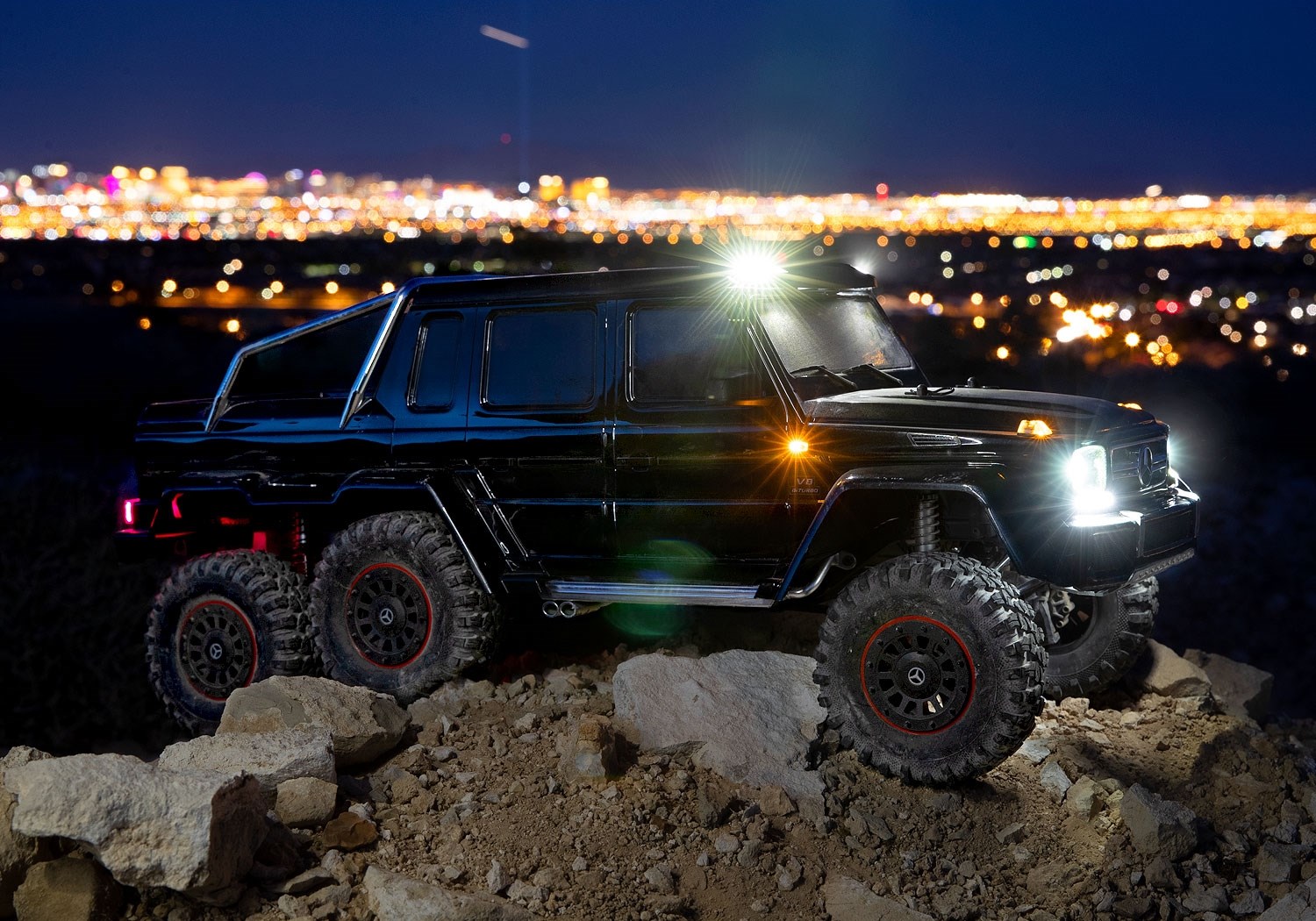

Med TRX-6 Mercedes-Benz G63 AMG 6x6 får man det råeste og robuste Traxxas kan by på av crawlere. Modellen er en offisielt lisensiert skala-replika av den spinnville originalen fra Mercedes som representerer all mangel på fornuft og at ingen kompromiss skal tas. Med seks hjul og drift på samtlige, mulighet for å sperre alle diffene fra radioen, portable aksler og høy-/lavgir kommer man frem der man måtte ønske, og det samtidig som man tar seg frem med stil.
Modellen kommer komplett med lakkert karosseri i svart, elektronikk, radio og noe verktøy. du vil i tillegg trenge batteri, kompatibel lader og 4xAA-batteri til radio, se anbefalt tilbehør.
Spesifikasjoner:
Lengde |
651mm |
Bredde |
249mm |
Høyde |
274mm |
Vekt |
3.99kg |
Bakkeklaring |
80mm |
Akselavstand til senteraksel |
324mm |
Akselavstand til bakerste aksel |
454mm |
Hex |
12mm |
Hjul |
1.9" |
Batteriboks(LxBxH) |
158.75x47x23/26mm |
Vannbestandig elektronikk |
Ja |
Nødvendig tilbehør:
- Batteri (NiMh 4-7 celler, LiPo 2-3s)
- Lader
- 4xAA-batteri til radio
Traxxas TRX-6 Mercedes-Benz G63 AMG 6x6
The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz G 63 AMG 6x6 with an officially licensed detailed scale replica built on the new TRX-6™ platform. Six drive wheels, three T-Lock™ remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.
TRX-6 Mercedes-Benz G63 AMG 6x6 Features:
- Officially Licensed Mercedes-Benz G 63 AMG 6x6 Body
- Exceptional Body Details
- Factory-Equipped LED-Lighting
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Portal Axles for Maximum Ground Clearance
- High/Low Two-Speed Transmission with Remote Shifting
- T-Lock™ Remote Locking Differentials
Specifications (#TRX88096-4-BLK):
- Length: 651 mm
- Front Track: 249 mm
- Rear Track: 249 mm
- Ground Clearance: 80 mm
- Weight: 3.99 kg
- Height: 274 mm
- Wheelbase (to intermediate axle): 324 mm
- Wheelbase (to rear axle): 454 mm
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 58.93°
- Front Shock Length: 90 mm
- Rear Shock Length: 90 mm
- Battery Tray: L158.75 x W47 x H23/26 mm
- Front Wheels: 2.2 x 1.02” (56 x 26 mm)
- Rear Wheels: 2.2 x 1.02” (56 x 26 mm)
- Front Tires: 4.64 x 1.89” (118 x 48 mm)
- Rear Tires: 4.64 x 1.89” (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5 HV
- Motor (electric): Titan® 21T Reverse Rotation
- Transmission: 2-speed High/Low, Remote Shifting
- Gear Pitch: 32P
- Differential Type: 4 Gear, Remote Locking
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-Driven 6WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
- Receiver: 6533
- Skill Level: 1
Motor Specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g (13.76oz)
- Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
- Turns: 21T reverse rotation
- Voltage: 16.8V
ESC Specs:
- Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
- Case Size: 1.23” W x 2.18” D x 1.04” H
- Weight: 2.6oz (74g)
- Motor Limit: 21-turns (550 size)
- On Resistance Forward: 0.004 Ohms
- On Resistance Reverse: 0.004 Ohms
- Peak Current - Forward: 100A
- Peak Current - Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5”
- Input Harness Wire: 26 Gauge / 14.5”
- Transistor Type: MOSFET
- PWM Frequency: 1700Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
* Patented
What’s In The Box:
- TRX-6, Ready-To-Drive® model
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
- Batteries: TRX-6 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
- Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971)
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
