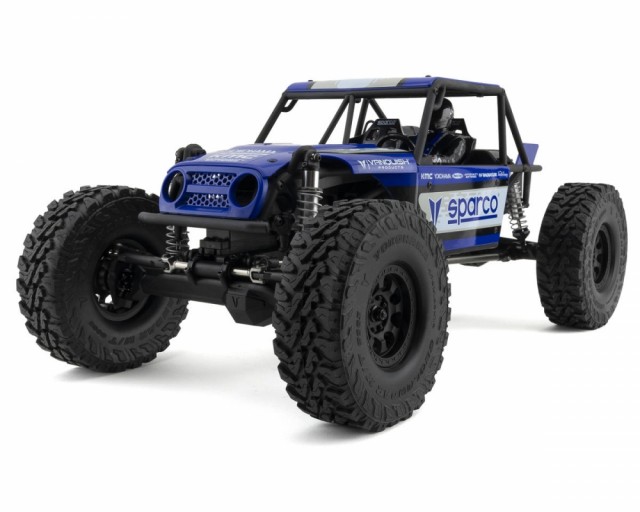

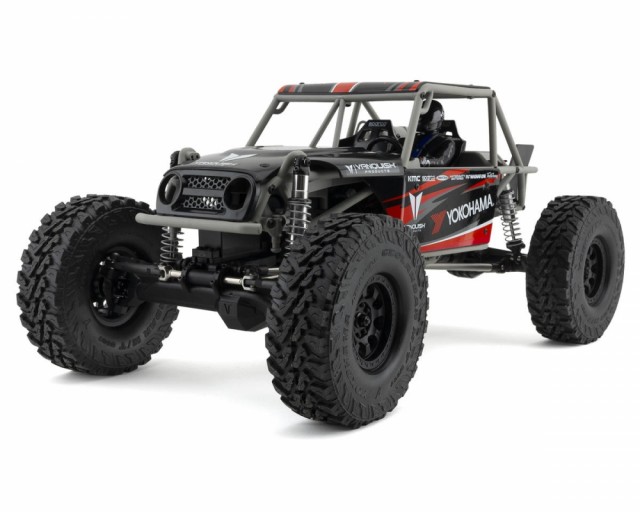

H10 OPTIC YOKOHAMA RTR

Ny utgave forventes å ankomme tidlig juni. post@rsmh.no for info eller spørsmål.

PrisNOK7 995,00 inkl. mva.
Ønskeliste
Artikkelnr.:
VPS09010A

Produktinfo

H10 HYDRO FRONT AXLE

Scale appearance meets performance with the new H10 Hydro Front Axle steering system.  Developed to simulate a double ended hydraulic ram steering system used in off-road rigs.  Utilizing a standard steering servo hidden behind the axle, the steering system is isolated from the chassis. The H10 Hydro front axle uses a 3pc ram that is protected and moved away from obstacles. The width of the H10 axle is increased by 0.600" compared to the F10 for even greater stability.

H10 HYDRO STEERING HIGHLIGHTS

4-LINK WITH AXLE MOUNTED SERVO

The Hyrdo ram replaces a traditional tie rod and the steering servo is hidden behind the axle.  All new H10 steering knuckles allow for the steering drag link to be protected and out of sight. The Hyrdo front axle includes VDI universal axle shafts for 47° of steering angle.

INTEGRATED STEERING SKID PLATE

The ram housing is secured by assembling it between the housing and servo mount, clamps on the ram housing add additional scale appearance. The axle housing has integrated C's, front lower skid plate truss and a removable 3rd member.

DETAILED MOLDED TUBE CHASSIS

H10 CHASSIS DETAILS

The styling of the H10 chassis is derived from Trail Buggy’s built to tackle the world's toughest terrain in comfort and style.  The 2-seat symmetrical design preserves a narrow overall width for easy navigation around obstacles. Short front and rear overhangs optimize approach and departure, allowing tires to hit obstacles first.

BATTERY COMPARTMENT SIZE: 93MM X 36MM X 42MM

SECURE BATTERY ACCESS

The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.

H10 MOLDED CAGE AND OPTIC ABS HARD BODY

YOKOHAMA OFFICIALLY LICENSED

Founded in 1917 Yokohama Tire Corporation opened its first US office in 1969.  With the belief that motorsports is the ultimate test of performance, innovation and durability. Everything we learn while competing under grueling race conditions leads to better performing, longer lasting tires for the track, street, and offroad.  Dedication. Toughness. Ability. Performance. The qualities that go into everything we do, make us who we are. ‘GO STRONG’ is more than just a tagline, it’s the underlying philosophy that supports the Yokohama way of life.  The Yokohama Geolandar brand has proven itself in the offroad industry and Vanquish Products H10 Optic RTR is proud to run the Geolandar M/T.  #TeamYokohama
